Pipe Bending Machine
CNC & Hydraulic Tube Bender
Product Description
MIVI pipe bending machines are designed for manufacturers producing furniture frames, automotive tube parts, exhaust components, fitness equipment, industrial frames and other bent metal tube products.
Our range includes CNC automatic pipe bending machines, single-head hydraulic tube benders and double-head bending machines for different tube sizes, finished-part geometries and production requirements.
Don't choose a bending machine by tube diameter alone.
Send us your tube size, wall thickness, material, bend radius and finished drawing so we can evaluate the machine and tooling together.
Machine Parameters
| Model | Pipe Bending Machine / Tube Bender |
| Main Types | CNC Automatic / Single Head Hydraulic / Double Head Hydraulic |

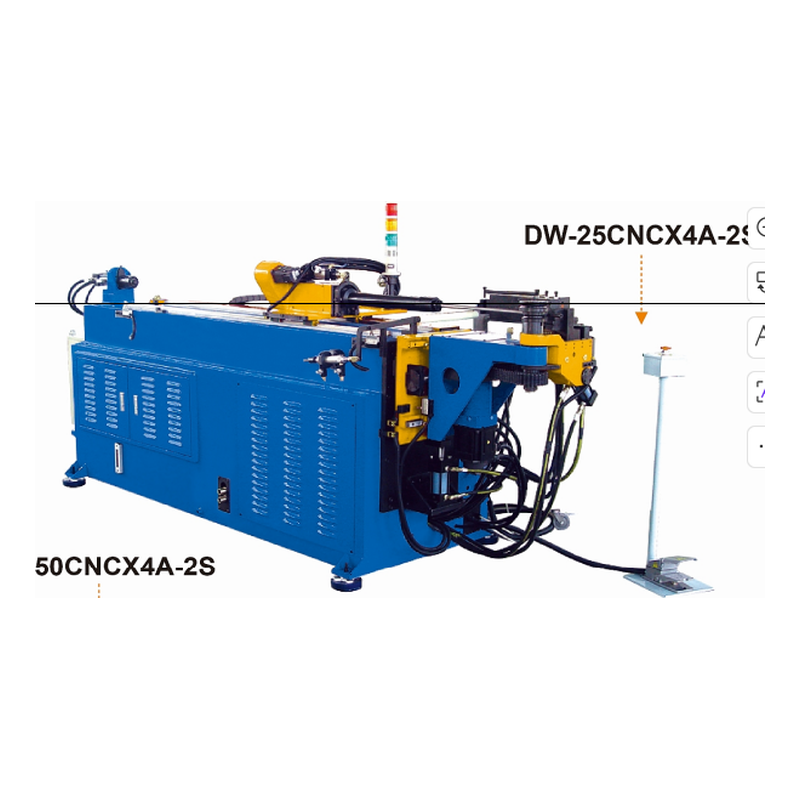

| CNC Tube Capacity | Approx. Φ18 × 2 mm to Φ63 × 4 mm in the standard series shown |
| Hydraulic Series | Up to Φ168 × 14 mm |
| Double Head Series | SW38: Φ38 × 2 mm / SW50: Φ50 × 2 mm |
| CNC Control | Multi-axis configurations available |
| Tube Materials | Steel, stainless steel, aluminum, copper and other suitable metals |
| Input Required | OD, wall thickness, material, radius, drawing, output |
| Service | Machine + tooling configuration based on finished part |
What Is a Pipe Bending Machine?
A pipe bending machine forms straight metal tubes into required angles, radii and three-dimensional shapes without cutting the tube into separate sections.
The right bending method depends on more than tube diameter. Wall thickness, material, bend radius, number of bends, bending direction and production volume all affect machine selection.
For example, a simple furniture frame may be suitable for a hydraulic or double-head machine, while a tube with several bends in different planes may require a multi-axis CNC configuration.
How Do I Choose the Right Pipe Bending Machine?
| Check First | Determines basic machine size |
| Main Type | CNC Automatic / Single Head Hydraulic / Double Head Hydraulic |
| Wall Thickness | Influences bending force |
| Material | Affects deformation and springback |
| Bend Radius | Critical for tooling and part quality |
| Bend Angle | Defines finished geometry |
| Number of Bends | Helps determine CNC requirement |
| Bending Direction | Determines whether rotation / multi-axis control is needed |
| Required Output | Helps determine the right automation level |
Two tubes with the same diameter may require completely different machines if their material, wall thickness, bend radius or finished geometry is different.
