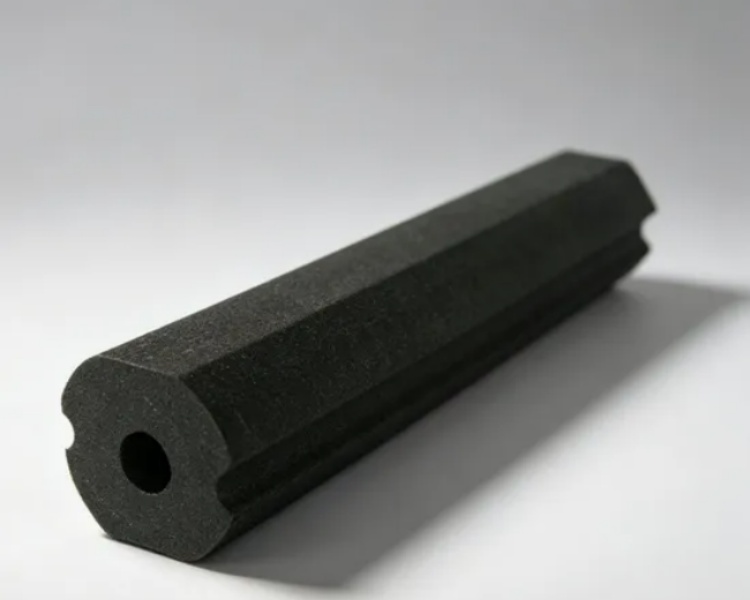

Ferrite Rod for High Frequency ERW Tube Welding.jpg

Ferrite Rod for ERW Tube Mill

Improve ERW tube welding efficiency with premium Mn-Zn ferrite rods. Reduce power consumption, stabilize weld quality, and extend impeder life. Custom sizes available.

Get a Ferrite Rod Recommendation

product details

What is ferrite rod/ferrite core

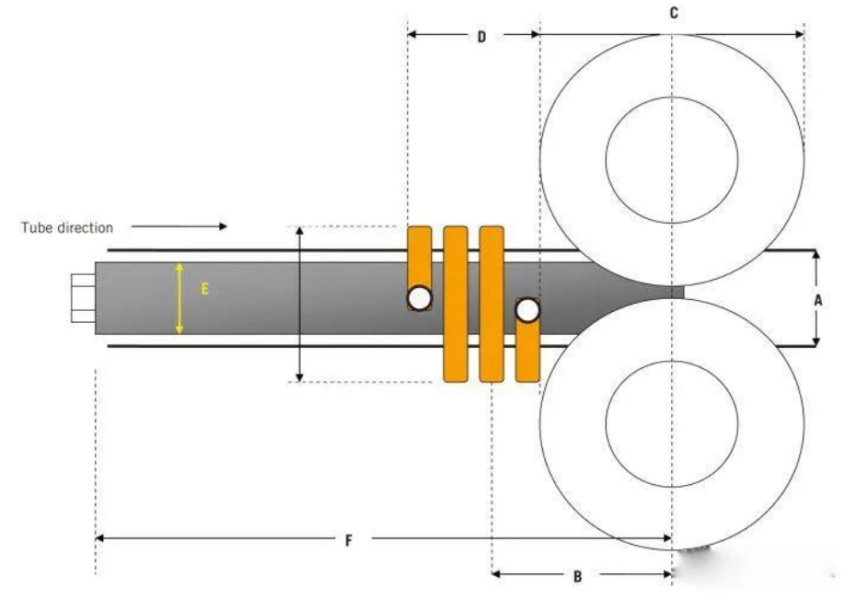

Ferrite Rod is the magnetic core installed inside an impeder during high-frequency induction welding. It concentrates the magnetic field around the tube edges, reduces energy loss inside the tube, improves weld stability, lowers power consumption, and increases welding efficiency. High-quality Mn-Zn ferrite rods help manufacturers achieve faster production speeds, lower operating costs, and longer impeder service life. HF Welding Ferrite Core

why ferrite rod matters

A ferrite rod is not simply a consumable inside the impeder. In an ERW tube mill, the performance of the ferrite core affects how efficiently high-frequency energy is transferred to the weld area. By concentrating magnetic flux and reducing unwanted current flow inside the tube, a properly selected and properly cooled ferrite rod can help the mill achieve more stable welding performance and better production efficiency.

For tube manufacturers, the real value is not the ferrite rod itself.

It is what happens after the right ferrite rod is working correctly in the welding system.

Six advantages of ferrite rod

Are These Problems Happening in Your Tube Mill?

Symptoms	Possible Cause
Weld Crack

	Ferrite Performance Decreased
Weld Crack	30-100m/min
Main motor	Ferrite Overheated
Tube Burst	Magnetic Flux Loss
High HF Current	Wrong Ferrite Size
Low Production Speed	Low Magnetic Permeability
High Electricity Cost	Worn Ferrite Rod

Ferrite Rod Size Guide

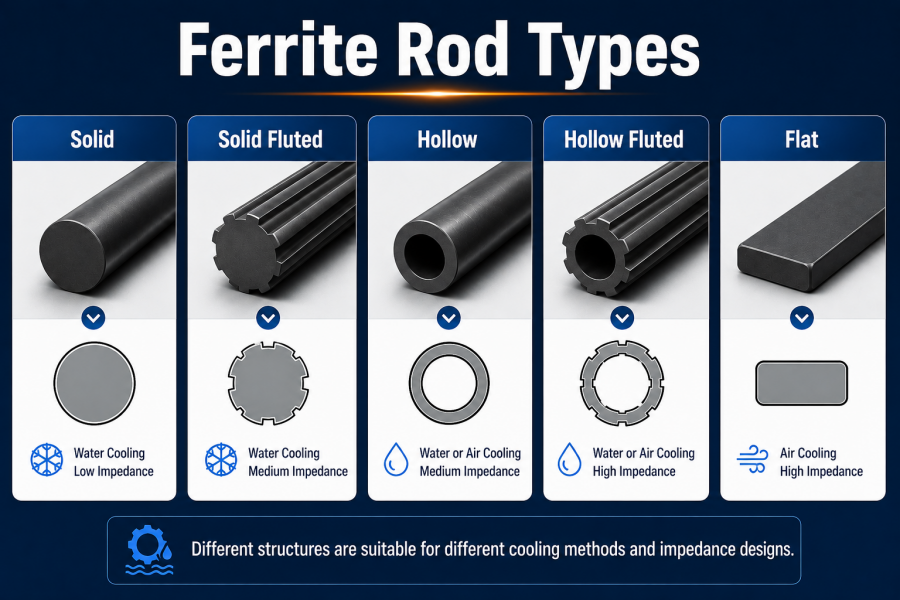

Different types of ferrite rods for tube mill impeders

Ferrite Rod Types

The dimensions should be matched comprehensively based on the pipe diameter, impedance structure, HF power, and cooling conditions.

Tube OD	Ferrite Diameter	Impeder
12-25 mm	6 mm	Small
25-50 mm	8 mm	Standard
50-76 mm	10 mm	Large
76-114 mm	12 mm	Heavy Duty

Product Advantages

High Magnetic Permeability

Benefit

More magnetic flux reaches the Vee.

Result

Lower HF power consumption.
High Curie Temperature

Benefit

Stable performance at high temperature.

Result

Longer service life.
Tight Tolerance

Benefit

Fits impeder accurately.

Result

Stable cooling and welding.
High Density

Benefit

Better mechanical strength.

Result

Less breakage.

Why Choose MIVI Ferrite Rod

High Magnetic Permeability Mn-Zn Material
Stable High Temperature Performance

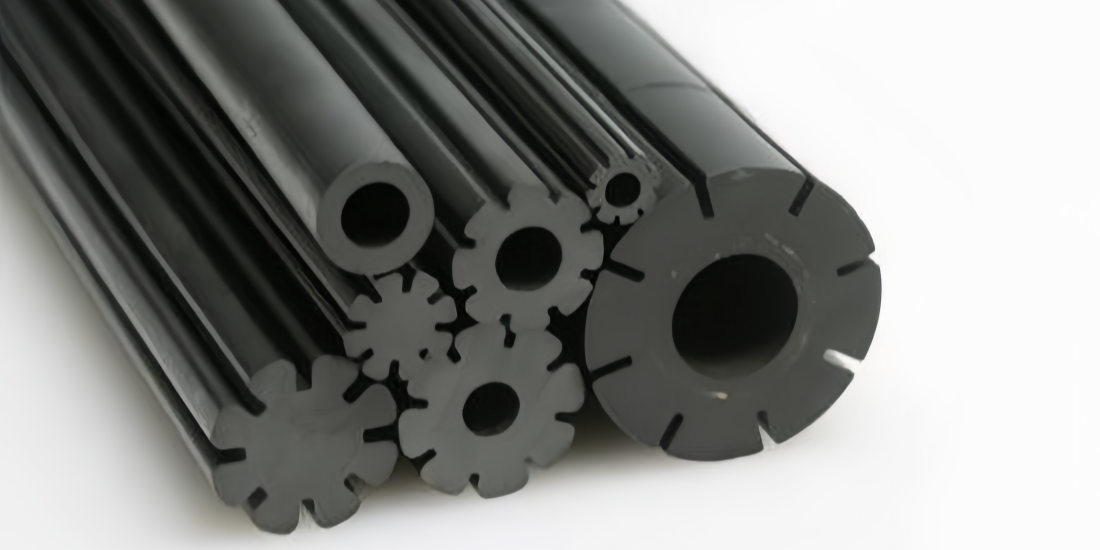

Custom Sizes Available
Fast Global Delivery
Technical Selection Support

1. What does a ferrite rod do in ERW welding?

A ferrite rod is the magnetic core installed inside an impeder during high-frequency ERW tube and pipe welding. It helps concentrate magnetic flux toward the welding area and reduces unwanted current flow around the inside of the tube, improving the efficiency of HF energy transfer to the weld zone.
2. What is the difference between a ferrite rod, ferrite core, and impeder core?

In ERW tube welding, these terms are often used to describe the magnetic core inside the impeder. Ferrite rod generally describes the physical form, while ferrite core or impeder core emphasizes its magnetic function and application. The complete impeder is a larger assembly that can include ferrite cores, casing, and cooling components.
3. How does a ferrite rod improve HF welding efficiency?

The ferrite core increases the inductive reactance of the unwanted current path around the inner tube wall and concentrates magnetic flux near the tube edges and welding Vee. This helps direct more of the available HF energy toward the weld area instead of losing energy through unwanted current paths.
4. What is the payment method

TT. 50% deposit, 50% before delivery.

Production will begin after receiving deposit, and delivery is expected to take 60 days to 90 days. We will take a video to report the progress during the process.
5. Can a ferrite rod reduce HF power consumption?

A properly selected ferrite core can improve power-transfer efficiency by reducing unwanted current flow and concentrating magnetic flux at the weld area. However, actual power savings depend on tube diameter, wall thickness, HF frequency, welding power, production speed, impeder design, coil configuration, and cooling conditions.
6. Can a ferrite rod increase ERW tube welding speed?

It can help improve the efficiency of the welding system and create more room for production-speed optimization. However, maximum welding speed also depends on HF power, material, tube dimensions, forming quality, squeeze-roll conditions, welding frequency, and other process parameters. A ferrite rod should therefore be selected as part of the complete welding system rather than as an isolated component.
7. How do I choose the right ferrite rod for my tube mill?

Ferrite selection should consider several parameters, including:

Tube outside diameter

Wall thickness

Steel or stainless steel material

HF welding frequency

HF generator power

Production speed

Impeder size and configuration

Cooling method and coolant conditions

The ferrite diameter, length, quantity, material grade, and geometry should be matched to the actual impeder and welding conditions.
8. Can one ferrite rod fit different tube sizes?

Not necessarily. Different tube sizes and welding conditions may require different ferrite dimensions, quantities, or impeder configurations. Using the correct ferrite configuration helps maintain appropriate magnetic performance and cooling conditions.
Excessive temperature can reduce ferrite magnetic performance. If the ferrite approaches its Curie temperature, it can lose its magnetic properties and become ineffective as an impeder core. Continuous and adequate cooling is therefore critical, particularly on high-power or high-speed tube mills.
9.What happens if the ferrite rod overheats?

Excessive temperature can reduce ferrite magnetic performance. If the ferrite approaches its Curie temperature, it can lose its magnetic properties and become ineffective as an impeder core. Continuous and adequate cooling is therefore critical, particularly on high-power or high-speed tube mills.
10.Why is water cooling important for ferrite rods?

HF welding generates substantial heat around the welding and impeder area. Proper cooling helps keep the ferrite within its effective operating temperature range, maintain magnetic performance, and reduce premature thermal damage. Cooling performance therefore has a direct relationship with ferrite service life and welding stability.
11.How often should ferrite rods be replaced?

There is no universal replacement interval. Ferrite service life depends on welding power, production speed, cooling efficiency, tube material, ferrite grade, installation, mechanical impact, and operating temperature. Instead of replacing ferrite rods strictly according to a calendar, inspect them regularly for cracking, overheating, wear, or deterioration in welding performance.

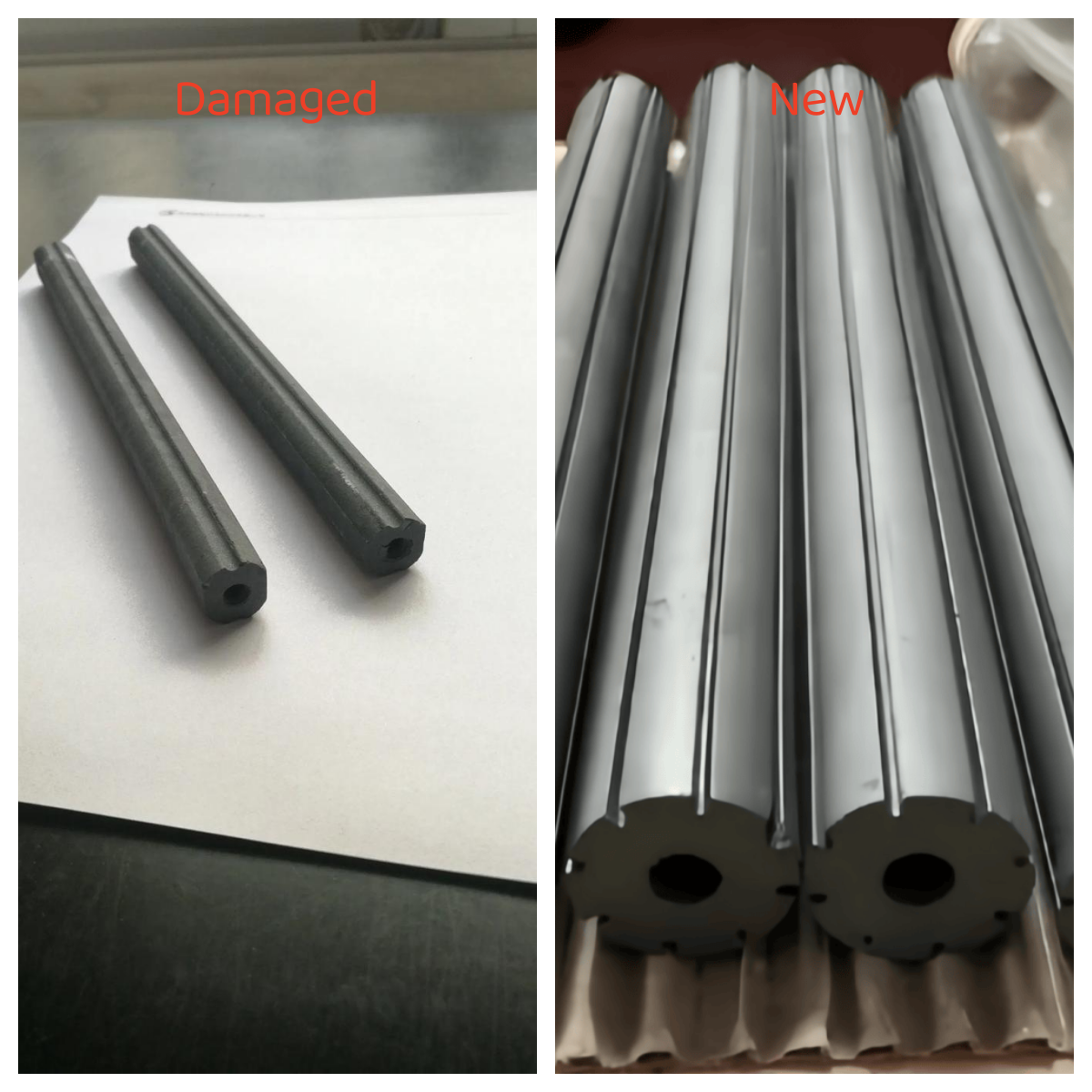

12.Can a damaged ferrite rod cause unstable welding?

Yes. Cracked, overheated, incorrectly positioned, or degraded ferrite cores can affect magnetic flux concentration and therefore the efficiency and stability of the HF welding process. If welding performance changes unexpectedly, the ferrite and impeder assembly should be checked together with HF power, coil position, forming, squeeze pressure, and cooling.
13.What ferrite material is suitable for high-frequency tube welding?

Ferrite for HF tube welding needs to be selected according to the actual operating frequency, magnetic flux density, temperature, and power level. Important material characteristics include low losses at the operating frequency, suitable magnetic permeability, adequate saturation flux density, and appropriate temperature stability. Choosing a ferrite grade only by price can result in poor efficiency or reduced service life.
14.Are ferrite rods available in different shapes and sizes?

Yes. Ferrite cores for tube welding are available in different diameters, lengths, and geometries. Common configurations include solid, fluted, hollow, and other designs intended to work with different impeder and cooling arrangements. The appropriate geometry depends on the impeder construction and operating conditions.
15.Can I buy replacement ferrite rods separately instead of replacing the complete impeder？

yes. Ferrite rods/cores can be supplied separately as replacement components, allowing the existing impeder casing or assembly to be reused when it remains in good condition. This can be a practical maintenance option and may reduce replacement costs.
16. Can MIVI provide a ferrite rod based on my existing tube mill?

Yes. To recommend a suitable ferrite rod or impeder core, provide your tube diameter, wall thickness, material, HF generator power, welding frequency, production speed, and—if available—the existing impeder dimensions.

Send us your tube mill parameters, and MIVI can help you identify a suitable ferrite rod specification for your application.

Need Help Choosing the Right Ferrite Rod

Tell us:

✔ Tube Size

✔ Wall Thickness

✔ HF Welder Power

✔ Production Speed
