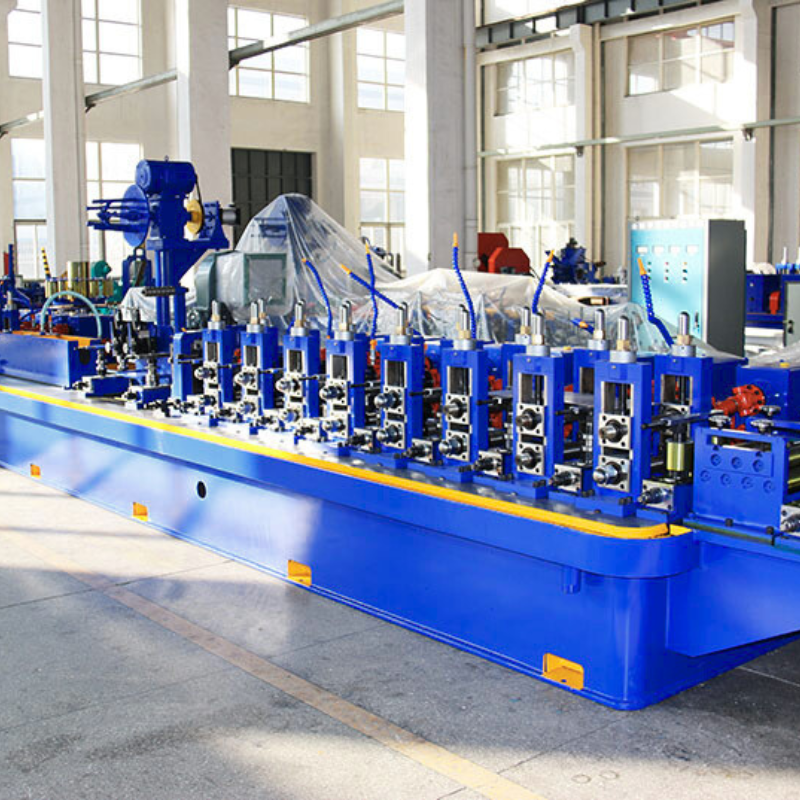

Tube Mill Machine

High quality steel pipe making machine

Equipped with advanced PLC system, the mental pipe making machine can automatically feed, form, weld and cut. The machine base is not only made of high-strength steel but also tempered, which to the greatest extent entends the durablility of the machines.

Pipe size	Ф 50~165mm
Pipe thickness	2.0-5.0mm
Warranty	1 year
Spare parts	Customized
Machine color	Customized

product details

Product Description

We are well aware that the durability and stability is core competitiveness of production line in the filed of industrial manufacturing. Every core component of the high frequency pipe mill includes our extreme pursuit for everlasting quality, which is aimed to become your reliable friend.
The quality of machine base is the most fundamental requirement for evaluating steel tube mill. This machine base is by no means of an ordinary steel. It is made of high-strength steel as base material and has undergone tempering. Through tempering, the internal stress can be eliminated and material grains are refined, giving machine base unparalleled resistance to deformation and fatigue when it undergoes long-term and high-intensity load. This not only ensures its accuracy just like its original performance, but also increases its lifespan, which to the largest extends your payback on investment.
The power transmission is the heart of the equipment. The spiral bevel gear adopts quenching process and a wear-resistant layer with extremely high hardness is formed on the gear surface, ensuring transmission torque is greater and smoother than conventional gears. The direct experience brought by this innovation is that the transmission system runs extremely stably and durable, effectively reducing operating noise, creating a quieter and more environmentally friendly production environment for you. Meanwhile it reduces the risk of downtime caused by wear of transmission components.

Machine Parameters

Model	MG-165 Tube Mill Production Line
Apply to the range of pipe sizes	Round pipes: ⌀50~165mm，δ2.5-5.0mm
Apply to the range of pipe sizes	Square pipes:2525mm-120120mm, δ1.0-4.0mm
Milling Speed	30-50m/min
Main motor	370*1
HF-Welder	400KW
Raw Material	Low carbon steel,Galvanized,Mild steel,alloy steel
Warranty	1 Year

ERW pipe production Flow chart

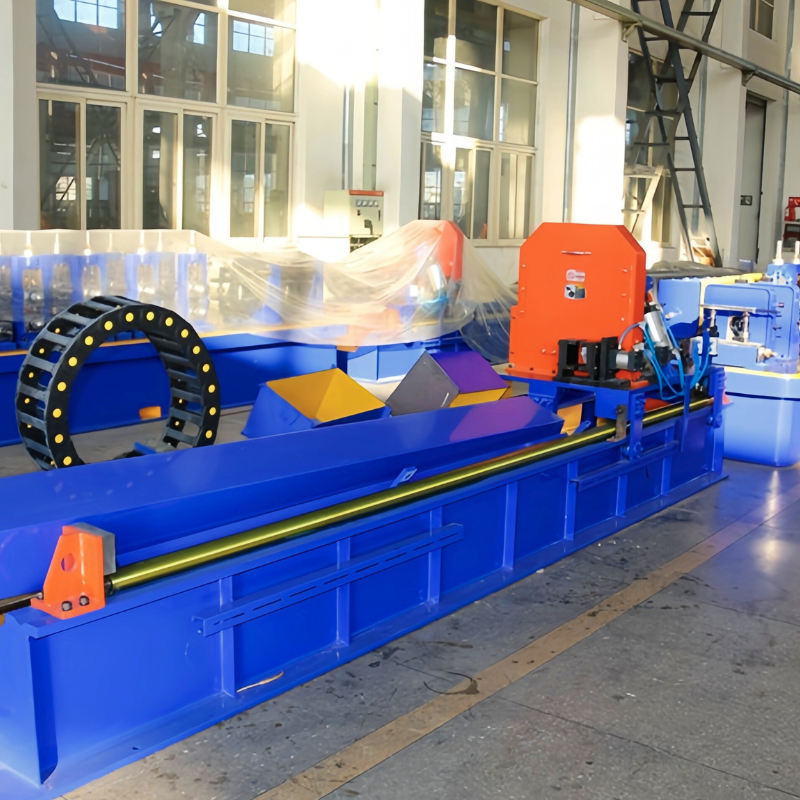

Steel Coil → Uncoiler →Shering & Welding → Accumulator → Forming mill ( Flattening → Forming) → Welding → water cooling → Sizing → Flying saw → Run out table & Packing Service

Product advantage

The core design of our machine is durability and reliability.
The machine is constructed from superior materials and engineered with progressive manufacturing technologies, which made it withstand the toughest industrial environments. Even under continuous operation, the machine perform stably, which reduces downtime and maintenance costs. This means you can reply on it for long-term service, day after day, year after year.
The foundation of our engineering philosophy is precision.
In the whole progress, including from the initial design phase to final production, we assure every machine meet standards of exact dimensional accuracy and uniformity. This level of precision ensure that your products can reach the industry standards or even exceed them, which to great evtent enhances customer satisfaction and strengthens your competitive edge.
You will work closely with our team of experienced engineers and specialists.
Together, we will design a machine that matches your exact requirements in terms of pipe shapes, dimensions, materials, and production capacity.
From initial installation to daily operation, our team offer full support.
Our services include:

Installation and Commissioning – Ensuring that your machine is set up correctly and ensure rapid production.

Training Programs – train your employee knowledge and skills needed to operate the machine safely and efficiently.

Troubleshooting and Repairs – quick and effective technical support to resolve issues and less downtime.
