Introduction

Have an old tube mill that is still running, but your customers are asking for new tube sizes or special profiles?

This is where many factory owners face a difficult choice: Do I replace the whole line, or can I upgrade what I already have?

In many cases, custom tube mill rollers can extend the useful life of an existing machine. You may be able to produce square, rectangular, or special-shaped tubes without replacing the entire production line.

But there is a catch.

A new roller is not automatically a good roller just because it fits the shaft. The roll dimensions, forming sequence, machine condition, tube size, wall thickness, material, and production speed all need to work together.

Get that part wrong, and the new roll set may bring more problems than benefits—unstable forming, higher mechanical load, scratches, dimensional problems, or even welding issues.

So the first step is not ordering the rolls.

It is finding out whether the old mill is actually suitable for the new product.

What Problems Do Factories Face When Replacing Rollers on an Old Tube Mill?

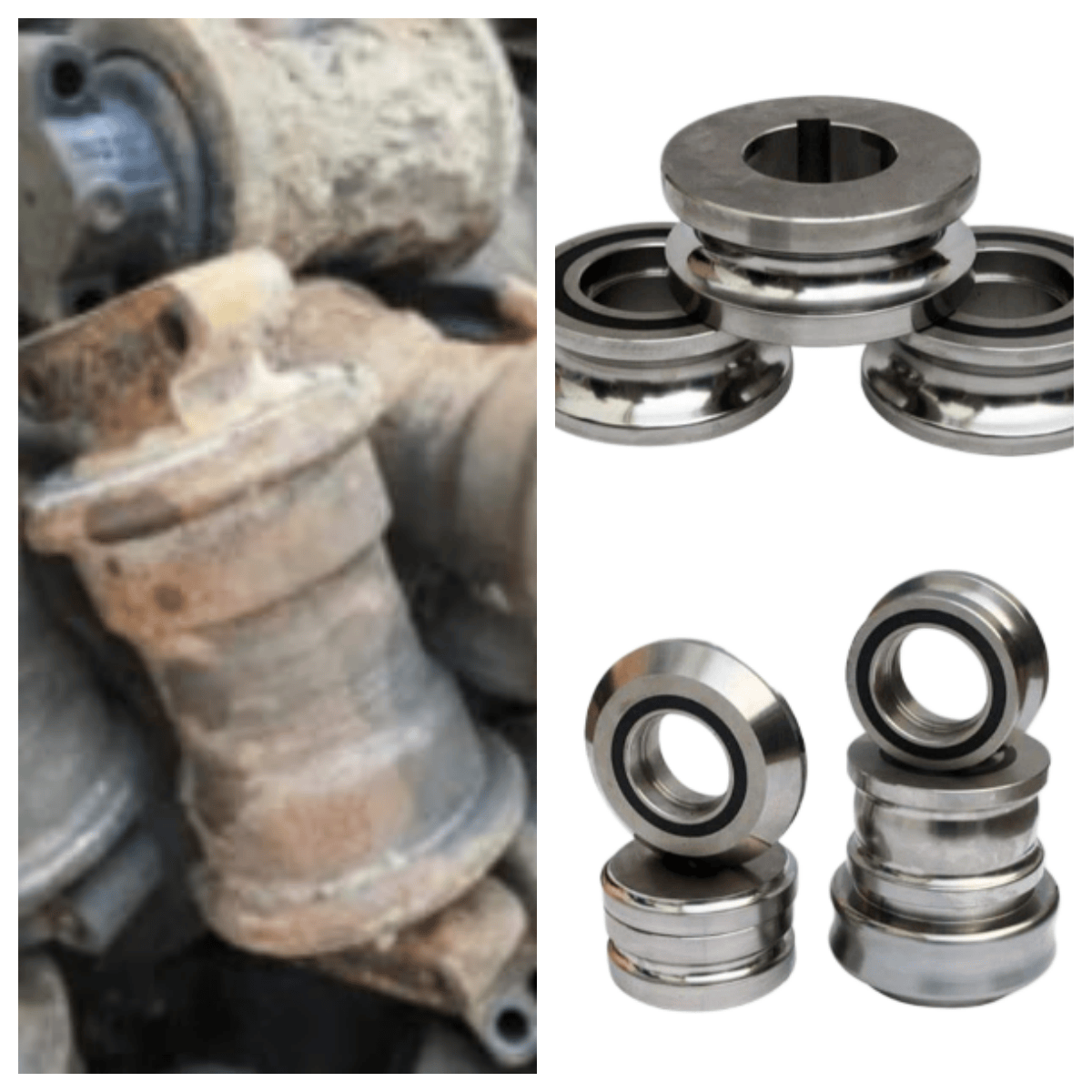

The biggest mistake is to treat old tube mill rollers as ordinary spare parts.

A machine may have been running for 10, 15, or even 20 years. During that time, drawings can disappear, stands can be modified, shafts can wear, and previous maintenance work may have changed the original setup.

So when you ask, “Can you customize tube mill rollers for an old machine?”, the answer is often yes—but only after checking what is actually there.

A new roll set can run into problems when:

Common Situation	What You May See	Business Risk
Old roller dimensions are unavailable	New rolls do not fit	Installation delays
Shaft dimensions are different	Roll cannot be installed directly	Extra machining cost
Roll pass is poorly designed	Tube shape is unstable	Higher scrap
Special tube profile	Corners are uneven	Quality complaints
Roll pressure is too high	Forming force rises	Faster wear
Roll surface is poor	Tube scratches appear	More rejected tubes
Alignment is inaccurate	Tube drifts during forming	Unstable welding
New profile exceeds machine capability	Mill runs under heavy load	Production instability

For a factory owner, this is the real issue.

You are not buying steel cylinders.

You are buying a solution that is supposed to increase production capability without creating a new bottleneck.

That is why custom tube mill rollers should be treated as an engineering project, not a simple replacement purchase.

What Causes Poor Compatibility Between New Rollers and an Old Tube Mill?

Usually, it comes down to three things: unknown machine dimensions, unsuitable roll-pass design, or a mismatch between the new product and the old machine's capability.

1. The Existing Machine Dimensions Are Not Fully Known

This sounds basic, but it causes a surprising number of problems.

A roller can look perfect on a drawing and still fail during installation because one critical dimension is wrong.

For an older tube mill, engineers should normally check:

• Roll shaft diameter
• Keyway dimensions
• Roll width
• Roll outside diameter
• Roll stand spacing
• Bearing arrangement
• Center height
• Spacer dimensions
• Adjustment range
• Existing forming stand configuration

Even a small difference can affect installation, alignment, or adjustment.

That is why the old machine should be measured before the roll design is finalized.

For an owner, this step is cheap compared with ordering a complete roll set and discovering later that it does not fit properly.

2. The New Tube Profile Needs a Different Roll Pass

This is especially important when moving into square, rectangular, or special-shaped tubes.

Can old tube mills produce square tubes with custom rollers?

Yes, they can in many cases. But producing a square tube is not simply a matter of changing the final roll groove.

The strip has to move through a controlled forming sequence before it reaches the final shape.

A typical process may look like:

Strip → Breakdown Forming → Gradual Forming → Closed Forming → Welding → Sizing → Final Square/Rectangular Profile

If too much deformation is forced into too few stands, you may see:

• Higher forming force
• Uneven corners
• Springback
• Surface damage
• Unstable weld position
• Shorter roller life

So when someone asks, “Can tube mill rollers be customized for rectangular tubes?”, the answer is also yes—but the roll-pass design must be developed around the complete forming process.

The same principle applies to special-shaped tubes.

You cannot simply copy a final cross-section and expect the machine to produce it smoothly.

3. The Roller Design May Not Match the Old Machine's Capability

This is where the investment decision becomes important.

A roll set may be able to produce the requested tube profile on paper, while the old mill may not have enough rigidity, power, adjustment range, or space to run it properly.

The machine should be checked for:

• Forming stand rigidity
• Motor power
• Transmission system
• Roll adjustment range
• Bearing capacity
• Available stand space
• Welding section compatibility
• Sizing capability

For example, a demanding forming schedule may work well on a newer, stronger mill.

On an older machine with worn components, the same design could increase mechanical load, vibration, and maintenance requirements.

So the correct design has to balance tube geometry, material, wall thickness, forming requirements, and the actual condition of the machine.

That is the difference between a roll that fits and a roll that works.

Can Custom Rollers Improve an Existing Tube Mill?

Yes. That is often the whole point of doing the project.

A well-designed custom roll set can help an existing mill take on a new tube profile, improve forming stability, or replace worn tooling without replacing the complete line.

But it should improve the economics of the line—not just the appearance of the roller.

For a factory owner, the key questions are:

Can I produce a new product?

Can I keep my existing machine?

Will production remain stable?

Will the upgrade cost much less than a new line?

If the answer to those questions is positive, a roller upgrade can make good business sense.

How Can Custom Tube Mill Rollers Solve These Problems?

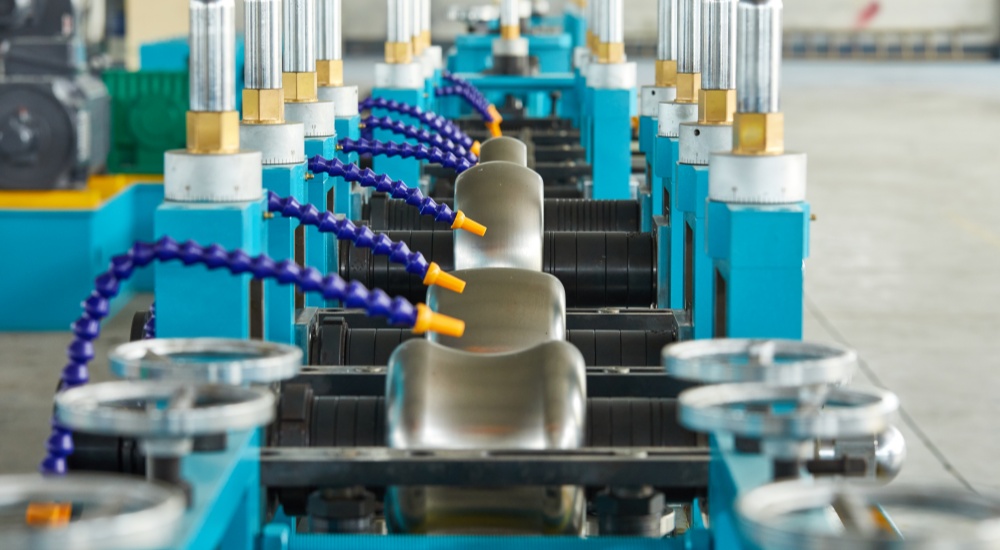

1. Start With the Forming Process

The first step is to design the roll-pass sequence around the target tube profile.

For square and rectangular tubes, the design needs to consider:

• Corner formation
• Material flow
• Reduction distribution
• Strip edge movement
• Final sizing
• Weld seam positioning

A balanced forming sequence helps reduce unnecessary deformation and keeps the tube more stable.

For special-shaped tubes, the process should start from the required final cross-section and work backward through the forming stages.

That is much safer than simply copying an existing roll set and changing the groove shape.

2. Optimize the Mechanical Parameters

The roller is only one part of the system.

Once the new rolls are installed, the mill may still need adjustments to:

• Roll gap
• Stand alignment
• Horizontal and vertical positioning
• Forming pressure
• Sizing pressure
• Line speed
• Welding parameters

This matters even more on older equipment.

Machine wear changes the real working condition. The settings that were correct ten years ago may no longer be the best settings today.

A new roll set should therefore be commissioned together with the machine.

3. Upgrade Only What You Need

This is usually the part that matters most to the owner.

Do I need a new tube mill or only a new roll set?

There is no universal answer.

If the main machine frame is still rigid, the transmission system is reliable, and the shafts, bearings, and stands remain usable, you may only need:

Existing Tube Mill + Custom Forming Rolls + Necessary Sizing Rolls + Alignment Adjustment

That can be a much more practical investment than replacing the entire line.

But there is a limit.

If the old machine has serious structural wear or cannot provide enough forming capacity for the new product, continuing to add tooling may simply push the problem down the road.

In that situation, a new tube mill may be the better investment.

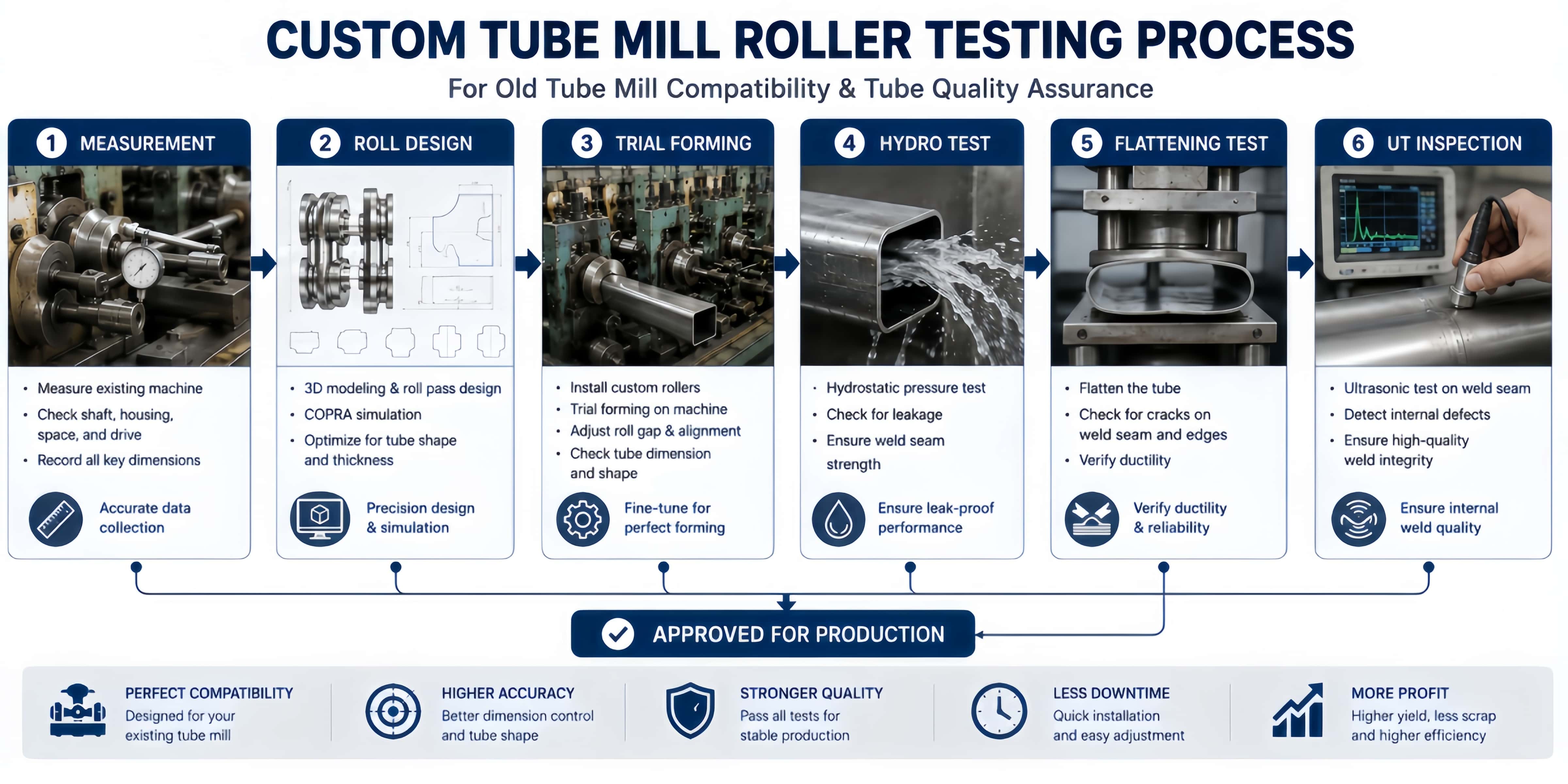

How Should Custom Tube Mill Rollers Be Tested and Inspected?

A new roll set should not be judged only by whether it can be installed.

The real test is simple:

Can the upgraded mill produce the required tube consistently, at the required quality and production level?

That means checking both the machine and the finished tube.

1. Hydro Test

A hydrostatic test checks whether the produced tube can withstand internal pressure without leakage.

This is useful when the forming setup has changed or a new tube profile has been introduced.

Poor forming can indirectly affect weld positioning and welding stability, which may later show up as leakage or weld failure.

So the hydro test should be considered together with:

• Weld seam condition
• Forming stability
• Tube dimensions
• Squeeze roll condition
• Welding parameters

2. Flattening Test

The flattening test helps evaluate weld integrity and tube behavior under deformation.

A tube may look good from the outside and still have a weak weld.

During flattening, problems may appear as:

• Weld seam cracking
• Incomplete fusion
• Brittle fracture
• Unstable tube shape
• Excessive deformation near the weld

This makes the flattening test particularly useful during trial production.

It gives the factory another practical check before moving into full production.

3. UT Inspection

Ultrasonic testing can help identify internal defects that are not visible from the outside.

Depending on the application, UT inspection can be used to check for:

• Internal weld defects
• Incomplete fusion
• Internal discontinuities
• Localized weld problems

So, how are custom tube mill rollers tested?

Not by looking at the roller alone.

The better approach is to check the complete process:

Machine Measurement → Roll Design → Installation → Trial Forming → Hydro Test → Flattening Test → UT Inspection

The final question is whether the complete forming and welding process produces a stable, compliant tube.

Can You Design Rollers for Special-Shaped Tubes?

Yes, provided the existing machine and production requirements are technically compatible.

Special-shaped tubes can be more challenging than standard round or square profiles because the material flow is often less forgiving.

The roll design needs to account for the target cross-section, forming sequence, wall thickness, material behavior, and available stands.

The same principle applies to rectangular tubes.

Can tube mill rollers be customized for rectangular tubes?

Yes, but the forming sequence, corner geometry, and sizing section need to be designed around the actual dimensions rather than treated as a standard square-tube job.

For special profiles, the engineering team may need to work backward from the final section and build the forming sequence stage by stage.

What Information Is Needed to Make Custom Tube Mill Rollers?

Before asking for a quotation, send more than just the tube size.

The more complete the information, the faster the engineer can tell you whether the project is practical.

Machine Information

• Existing tube mill model
• Roll stand quantity
• Roll shaft dimensions
• Roll diameter
• Shaft and keyway drawings
• Photos of the forming stands
• Existing roller drawings, if available

Tube Information

• Tube shape
• Tube outside dimensions
• Wall thickness
• Material grade
• Required production speed
• Production volume
• Required dimensional tolerance

Existing Production Information

• Current tube size
• Current roller set
• Current forming problems
• Existing welding system
• Current production speed
• Photos or videos of the line

For an owner, this information also helps answer another important question early:

Is this really a roller project, or is the machine itself reaching the end of its useful range?

That distinction can save a lot of unnecessary investment.

Information	Example
Tube Shape	Round / Square / Rectangular / Special-shaped
Tube Size	40 × 40 mm / 60 × 30 mm
Wall Thickness	1.5–3.0 mm
Material	Carbon Steel / GI Steel
Production Speed	60–100 m/min
Existing Machine	Model + photos
Shaft Diameter	Actual measured dimension
Roll Drawing	PDF / CAD / solidworks
Current Problem	Scratches / unstable forming / incorrect dimensions
Target	New tube size or better quality

 Contact MIVI Engineers for Custom Tube Mill Rollers

How Do You Check Compatibility With an Existing Tube Mill?

Compatibility should be checked before manufacturing starts.

A practical evaluation should connect five things:

Existing Machine → Roll Stands → Target Tube → Roll Pass Design → Production Conditions

That means asking:

• Will the new rolls fit the existing shafts?
• Is there enough adjustment range?
• Can the stands handle the forming force?
• Is there enough space for the required roll geometry?
• Can the existing transmission system handle the load?
• Can the welding and sizing sections support the new tube?
• Will the expected production speed still be realistic?

This is why drawings, photos, measurements, and actual production information matter.

A good compatibility check can prevent a very expensive mistake: spending money on new tooling and then discovering that the old mill is the real limitation.

Recommended Machine and MIVI Tube Mill Solution

For factories that want to keep their existing production line, custom tube mill rollers are often the first solution worth evaluating.

MIVI looks at the project as a complete system:

Existing Tube Mill → Roll Stand Dimensions → Target Tube Profile → Roll Pass Design → Forming Conditions → Final Tube Quality

The objective is not simply to manufacture a roller that fits the shaft.

The objective is to create a roll set that works with the complete production process.

For a factory producing square, rectangular, or special-shaped tubes, the customized solution may include:

• Forming rolls
• Fin-pass rolls
• Sizing rolls
• Guide rolls
• Customized roll dimensions
• Machine compatibility assessment

Where the old machine is still structurally sound, a tooling upgrade may be enough.

Where the machine has reached its limits, the more sensible option may be a new [ERW Tube Mill] or [Customized Square Welded Steel Tube Mill].

The point is not to sell more equipment.

It is to make sure the money you put into the factory actually improves production.

Conclusion

An old tube mill does not automatically mean you need a new production line.

In many cases, custom tube mill rollers can give an existing machine a new product range—especially when the frame, transmission system, roll stands, shafts, and bearings are still in reasonable condition.

But the decision should not be based on the roller price alone.

For a factory owner, the bigger question is:

Will this upgrade give me a reliable new production capability without creating higher scrap, more downtime, or unnecessary maintenance?

That is why successful customization needs to consider:

• Existing machine geometry
• Shaft and roll dimensions
• Roll-pass design
• Tube profile
• Material and wall thickness
• Forming capacity
• Welding conditions
• Hydro test results
• Flattening test results
• UT inspection

For square, rectangular, and special-shaped tubes, the right solution is to design the rollers around both the target tube geometry and the actual capability of the existing machine.

If you have an old tube mill and are considering a new tube profile, send the machine photos, roller drawings, shaft dimensions, and target tube specifications.

MIVI can first evaluate whether the existing mill is worth upgrading, then determine whether you need a customized roll set or a broader machine solution.

That way, you are not simply buying new rollers.

You are making a more informed investment in the production line.

FAQ

1. Can you customize tube mill rollers for an old tube mill?

Yes. In many cases, custom tube mill rollers can be designed for an existing or older tube mill. The key is to check the machine's actual dimensions and condition first, including shaft diameter, keyway, roll stand spacing, bearing arrangement, center height, and adjustment range. The target tube size, material, wall thickness, and production speed also need to be considered.

2. Can an old tube mill produce square tubes with custom rollers?

Yes, provided the existing mill has enough forming capacity and the roll-pass design is suitable. Producing square tubes is not simply a matter of changing the final roll groove. The strip needs to be gradually formed through the mill, with proper control of corner formation, material flow, weld position, and final sizing.

3. Can tube mill rollers be customized for rectangular tubes?

Yes. Custom tube mill rollers can be designed for rectangular tube production. The roll design should be based on the actual tube dimensions, wall thickness, material, forming sequence, and the number and capability of the available stands. A proper forming sequence helps reduce excessive deformation and keeps the tube shape stable.

4. Can you design rollers for special-shaped tubes?

Yes, special-shaped tube rollers can also be customized. These projects usually require more detailed roll-pass engineering because the material flow can be more complicated than with standard round or square tubes. The final tube profile, wall thickness, material, production speed, and existing mill configuration should all be reviewed before the roller design is finalized.

5. What information do you need to make custom tube mill rollers?

The most useful information includes the existing tube mill model, roll shaft dimensions, keyway dimensions, roll diameter, roll stand drawings or photos, current roller drawings, target tube shape and size, wall thickness, material grade, production speed, and any current forming problems. CAD drawings are helpful, but clear measurements and photos can also be used for an initial evaluation.

6. How do you check whether custom rollers are compatible with an existing tube mill?

Compatibility is checked by comparing the existing machine geometry with the new roll design and target tube requirements. Engineers normally review shaft dimensions, roll stand spacing, available adjustment range, bearing capacity, machine rigidity, transmission capability, forming capacity, and welding and sizing sections. This helps determine whether the existing machine can support the new roll set before manufacturing begins.

7. Do I need a new tube mill, or can I use only a new roll set?

It depends on the condition and capability of the existing machine. If the frame, transmission system, shafts, bearings, and roll stands are still in good condition, a custom roll set may be enough to produce a new tube profile. If the machine is heavily worn or cannot provide sufficient forming capacity, replacing or upgrading more of the production line may be the better investment.

8. How are custom tube mill rollers tested after manufacturing?

The roller itself should be checked for dimensions, fit, and installation compatibility. More importantly, the complete production process should be tested during trial forming. Depending on the application, tube quality can then be evaluated through dimensional inspection, hydrostatic testing, flattening tests, and UT inspection. The goal is to confirm that the upgraded line can consistently produce the required tube.

9. What causes poor compatibility between new rollers and an old tube mill?

Common causes include incorrect shaft or keyway dimensions, inaccurate machine measurements, insufficient adjustment range, poor roll-pass design, excessive machine wear, inadequate forming capacity, and a mismatch between the new tube profile and the existing mill. A roller can be manufactured correctly and still perform poorly if the overall machine system is not considered.

10. Can custom tube mill rollers improve an existing tube mill?

Yes. A well-designed custom roll set can help an existing tube mill produce new tube sizes or profiles, improve forming stability, and extend the useful life of the equipment. However, the goal should be more than simply fitting new rollers. The upgrade should also make commercial sense by improving production capability without creating excessive scrap, downtime, or maintenance costs.
