How to Improve Welding Efficiency in ERW Tube Mills

2026-04-13

In ERW tube production, welding efficiency isn't just a technical detail—it has a direct impact on your production cost, output stability, and overall product quality. Many manufacturers assume that upgrading equipment will automatically solve welding issues. But in reality, even advanced machines can struggle if the welding process itself isn't properly optimized.

A common mistake is focusing too much on increasing power. In high-frequency welding, efficiency doesn't come from stronger current alone, but from how effectively that current is used. If the current is not properly concentrated at the weld seam, a significant portion of energy is lost heating areas that don't contribute to bonding. The result is higher power consumption without a corresponding improvement in weld quality.

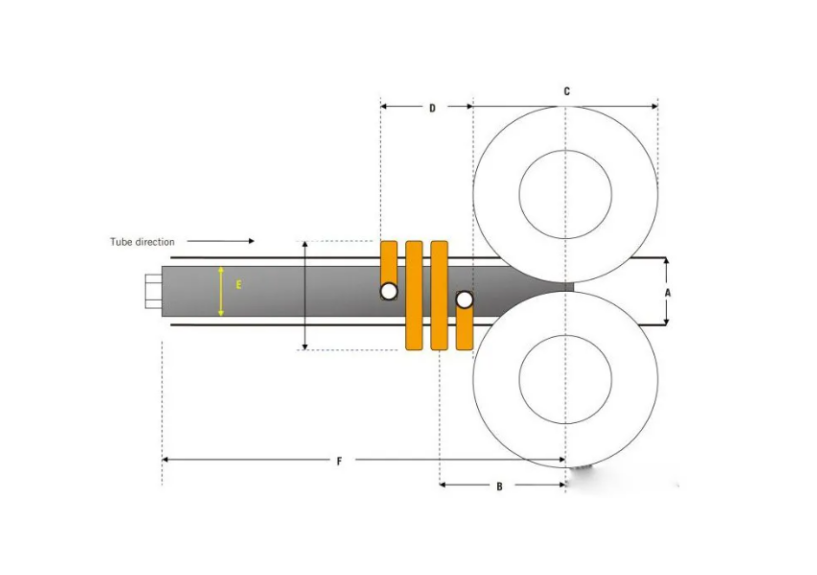

What really makes a difference is current control—and this is where the electromagnetic system plays a key role. In most ERW lines, ferrite cores are installed inside the tube during welding. Their function is not just auxiliary; they directly influence how the current flows. By increasing inductance and guiding magnetic flux toward the weld zone, ferrite helps concentrate heat exactly where it is needed.

When this magnetic control is not optimized, several practical problems tend to show up on the production floor:

Heat spreads beyond the weld area instead of being focused
Weld seams may appear inconsistent or under-fused
Line speed has to be reduced to maintain quality
Energy consumption rises unnecessarily

From experience, improving welding efficiency is usually not about one single adjustment, but a combination of small, targeted optimizations.

First, your welding parameters—such as power input, frequency, and speed—should always match your material thickness and production targets. Running mismatched settings often leads to either overheating or insufficient fusion.

Second, pay close attention to current concentration at the seam. This is often overlooked because it's not directly visible, but it determines how efficiently energy is being used.

Third, review your ferrite system. Not all ferrite materials perform the same under different frequencies and cooling conditions. A poorly matched ferrite setup can limit your efficiency even if the rest of the system is working properly.

In many cases, simply upgrading or reconfiguring the ferrite rods brings noticeable improvements. With better magnetic guidance, the current follows a more controlled path along the strip edges, allowing faster heating and more stable welding—without increasing overall power consumption.

This principle is similar to surface treatment processes like thermal spray zinc, where material and energy must be precisely directed to achieve effective coating and corrosion protection. In both cases, control and efficiency go hand in hand.

If your production line is facing unstable weld quality or rising energy costs, it may be time to take a closer look—not just at the machine itself, but at how the entire electromagnetic system is functioning.
