Precision Maintenance Guide for Erw Tube Mill Machine

I. The Importance of Maintenance

Maintenance of a Erw Tube Mill Machine is far more than simply “repairing when it is broken.” It is a positive strategy to prevent serious problems before they occur, which guarantees identical excellent performance,  more economical and practical product . Its core importance are as follows:

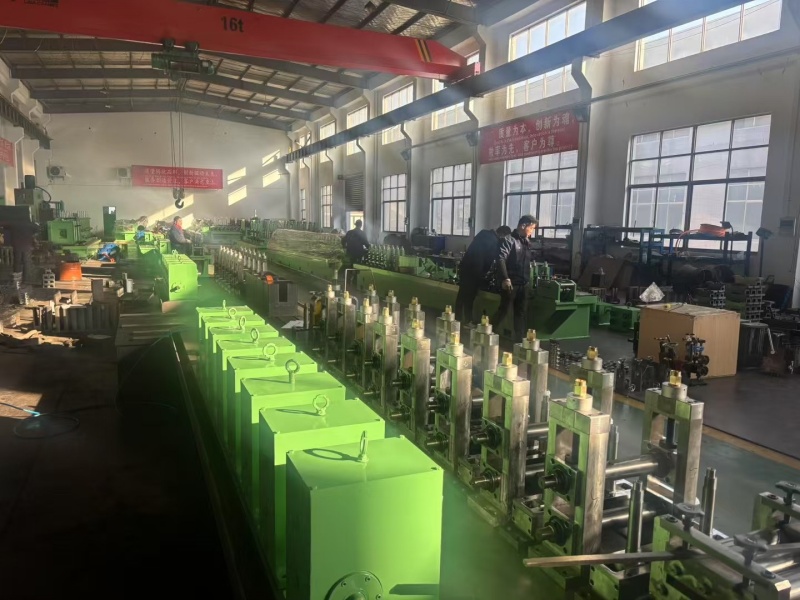

High Frequency Welding Tube Mill

1. Ensuring Continuous Production and Minimizing Downtime

Through regular examination and maintenance, potential problems such as component wear, bolt loosening can be found and handled early. In this way, the number of unplanned shutdowns to some extent have decreased , guaranteeing the smooth running of the production line.

2. Maintaining Product Quality and Dimensional Accuracy

The precision of a Steel Pipe Manufacturing Machine is fundamental for producing high-performance pipes. Any subtle errors (such as a bent shaft, worn bearing, or damaged roll) can directly to some extent affect product quality, including pipe roundness, surface quality, and dimensional accuracy.
Strict maintenance is crucial for product quality and precision.

3. Extending Equipment Lifespan and Reducing Total Cost

It is timely lubrication, part replacement, and mechanical adjustments that remarkably slow down the deterioration rate of the equipment

The cost of a planned minor repair is far less than the cost of a major repair and the associated production losses caused by an accident. This is why it is a long-term investment for pipe manufacturer to reduce cost and improve efficiency.

II. General Maintenance Requirements and Procedures

The systemic and standardized process of Erw Pipe Mill are as follows:

• Inspection and Replacement:
  Checkelectrical components, mechanical parts, guide systems, straighteners, and lubrication systems regularly. And they will be replaced based on the status.
• Adjustment and Calibration:
  Recalibrate forming and sizing mechanisms to maintainmechanical precision and accuracy
• Tightening and Sealing:
  Inspectand secure all bolts and nuts carefully , including foundation bolts, and fix any oil leaks.
• Lubrication Management:
  Itis the lifeline of maintenance to strictly follow lubrication schedules and use the specified lubricants.

III. Specific Maintenance Requirements for Key Components

1. Shafts – The Core of Forming Accuracy

(1) Inspection Frequency:
After each roll change, at least every six months, and whenever an accident or abnormal product quality occurs.

(2) Inspection Method:
Using a mirror to auxiliary examine shaft straightness.

Corrective Actions:

• Loose Bearings:Tighten or replace.
• Bent or Deformed Shafts:Straighten, regrind, re-chrome, or replace. After any operation, re-center the shaft shoulders.
• Scratches/Wear:Light scratches can be smoothed using a file or sandpaper; For severe ones, rework or replacement is necessary.

2. Gears – The Power Transmission Hub

(1) Common Failure Causes: Wear, pitting, overload, dust ingress, and insufficient lubrication.

(2) Inspection Frequency: At least every three months, open all gearboxes for examine , or immediately inspect when abnormal temperature rise, vibration, or noise occurs.

Key Maintenance Points:

Inspect gearbox oil level regularly and deal with leaks promptly.

Ensure gear alignment during installation to prevent injuring to the gears on account of failure of the bearings.

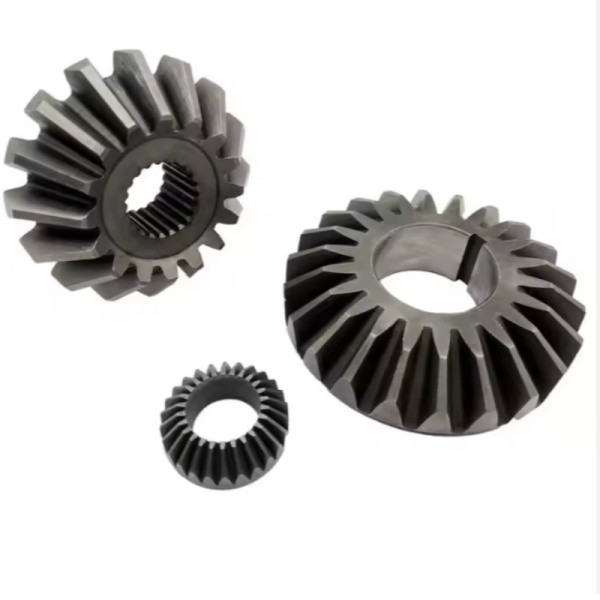

Gear

3. Bearings – The Rotational Joints of Stability

Characteristics:
Most bearings have long service lives and frequent disassembly and inspection are not required. But roll shaft bearings are important and require close inspection.

Common Failure Causes:

• Insufficient lubrication
• Sudden overload such as double-thickness material passingthrough )
• Installation errors (such astilted mount resulting in bending stress)
• The coolingor lubricating fluid infiltration so that  dissolve grease
• The abrasive particles such as oxide scale intrusion (highlighting the need for sealing).

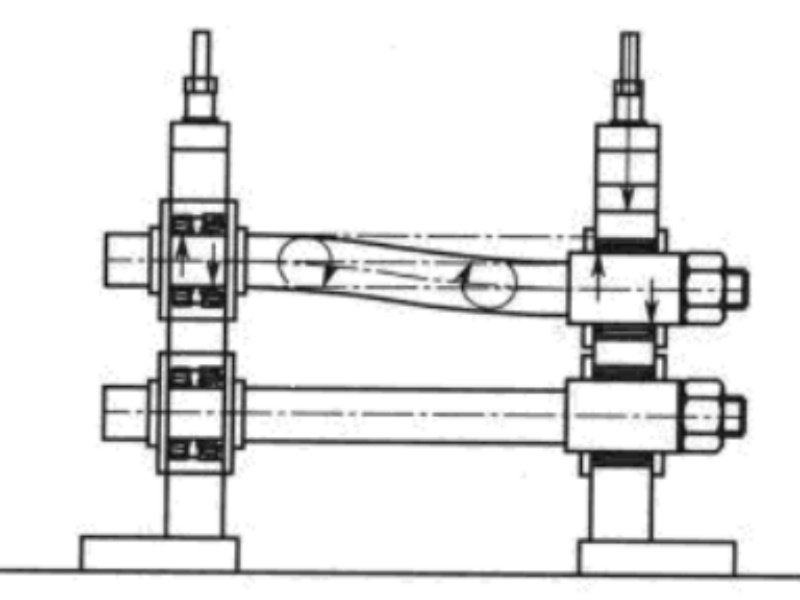

The pressure on the bearing caused by the asymmetry at one end of the shaft

Diagnostic Methods:

• Sensory Check:The initial assessment through listening for unusual sounds, feeling for vibration or overheating (normal temperature ≤ 60°C).
• Instrumental Check:Using temperature sensors or electronic stethoscopes for accurate precise
• Installation Requirements:
  In the removal and installation, the proper toolsare used. Ensure even pressure, correct positioning, and prevent contamination

4. Frame and Main Structural Components

• Frame:
  Although robust, it still needs to be regularlyexamined welds, connecting joints, and foundations to ensure structural safety.
• Other Components:
  Feed rolls, guiding devices, side roll stands, straighteners, and flying saws must be included in the maintenance and lubrication schedule.

5. Roll and Tool Management – Protecting Precision Molds

Handling and Storage:

• It is necessary to handle with care toavoid bumping into things
• Store in a dry environment.
• Apply oil or grease coating for rust protection during long-term storage.When not in use for a long time, oil or grease must be applied for rust prevention protection.

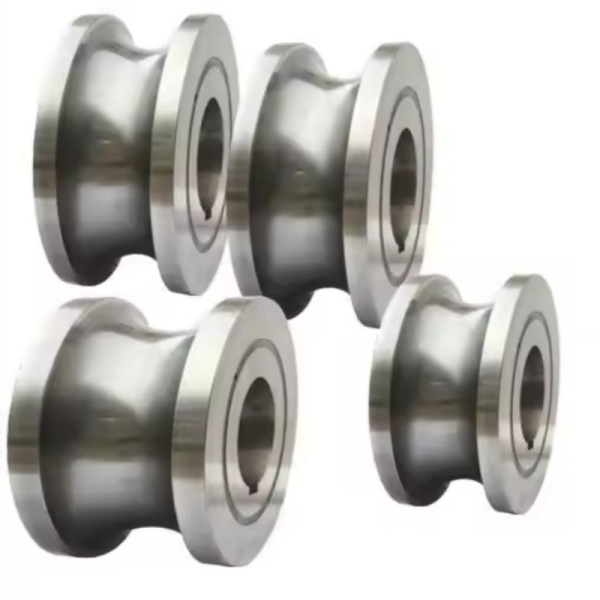

Roller

6. Spare Parts Management – The Buffer Against Unexpected Downtime

• Strategy:

For easily worn components (such as specific bearings, seals, and rolls), it is recommended to maintain a reasonable stock when needed.

• Principle:

The inventory range is determined by the significance of the component's impact on production suspension, in order to achieve rapid response and cost balance.
