A pipe that looked perfectly fine during production may suddenly fail during flattening tests. In some cases, the weld seam starts opening during sizing. In more serious situations, the pipe can crack or even burst during hydro testing. Some manufacturers don't discover the issue until the customer begins further processing and files a complaint.

In many cases, the pipe didn't suddenly "develop" a problem later. The weakness was already present in the weld from the moment it was formed, often caused by incomplete fusion, residual stress, or poor edge bonding during high-frequency welding.

And in many cases, the problem starts at the weld seam.

A weak weld doesn't always show obvious signs right away. That's what makes it expensive. By the time the defect becomes visible, you may have already produced a large batch of defective tubes.

According to industry reports, incomplete fusion and seam defects remain one of the most common quality problems in ERW pipe manufacturing, especially when welding parameters aren't properly matched.

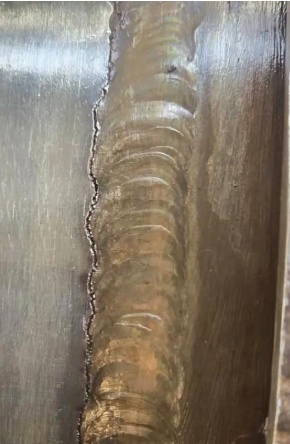

🔍What Weld Failure Actually Looks Like on the Production Line

A lot of people expect weld failure to be obvious.

They imagine a large crack running through the seam or a pipe splitting open right after welding. Real production problems usually don't happen that way.

More often, the early signs are subtle enough to be ignored.

An operator may notice that burr removal becomes inconsistent for a few hours. Someone in quality control may find that the weld bead looks slightly unstable compared with the previous shift. Sometimes the seam edge starts separating a little during sizing, but production keeps running because the defect doesn't seem serious enough to stop the line.

Then the bigger issues show up later.

At that point, people start treating it like a sudden failure. In reality, the weakness usually existed much earlier.

One of the most common reasons is incomplete fusion. The outside weld can appear smooth after scarfing, while the internal bond between both strip edges remains weak. Once the pipe is exposed to pressure, bending, or further forming, that hidden defect gets exposed very quickly. This type of issue is still widely recognized as a common ERW weld defect in production lines.

⚠️The First Reaction Is Often Expensive — And Wrong

When weld defects start repeating, factories often react too fast.

Production managers begin questioning the welding unit. Operators raise power settings. Line speed gets reduced. In more extreme cases, management starts talking about replacing the entire tube mill.

That reaction feels logical, but it often sends people in the wrong direction.

I've seen factories spend heavily on new equipment while the real issue turned out to be worn rolls or poor squeeze adjustment.

🔥Heat Without Proper Squeeze Still Creates Weak Welds

High-frequency welding depends on timing and balance.

Too much heat creates its own problems.

When strip edges are overheated but squeeze force isn't enough, oxides can remain trapped inside the weld area. The seam may look acceptable from the outside, but internally the bonding strength is poor.

The opposite situation creates a different problem.

If squeeze force is too aggressive while heat input is too low, the strip edges never fully reach forging temperature. This often results in cold welds, weak penetration, or partial fusion defects.

Both situations can eventually lead to seam cracking.

This is why experienced operators usually watch multiple variables at the same time instead of focusing on a single setting:

When one parameter changes, the others usually need adjustment as well.

🔧Sometimes the Welding Unit Isn't the Problem at All

Mechanical wear causes more welding problems than many factories realize.

Squeeze rolls wear gradually, so the issue often develops slowly enough that nobody notices it immediately.

Pressure becomes uneven. Alignment shifts slightly. Bearings develop clearance after long production cycles.

None of these problems seem dramatic on their own.

But once the squeeze rolls begin moving unevenly, weld consistency becomes difficult to maintain. Misalignment, lap welding, and unstable seam quality often follow.

Damaged bearings are another common issue. When bearings fail, squeeze rolls can lose positioning stability, which directly affects weld formation. Several ERW defect studies specifically identify roll wear, bearing damage, and poor alignment as common causes of seam defects.

And this is exactly why simply increasing power often makes things worse instead of better.

The machine may not need more energy.

When squeeze rolls begin wearing unevenly, pressure becomes unstable.

One side may receive more force than the other.

That creates misalignment, lap welding, and inconsistent seam bonding.

Even small bearing gaps can create vibration that affects weld stability.

Many ERW seam misalignment issues are directly related to roll wear and poor tooling alignment.

And yet many factories respond by increasing welding power.

That usually increases scrap rate instead of fixing the real issue.

📦Raw Material Problems Are Easier to Ignore Than Machine Problems

Sometimes weld quality starts getting unstable even though nobody has touched the machine settings. But suddenly flattening tests become inconsistent, weld seams start looking unstable, or scrap rates quietly go up.

When that happens, many factories immediately check the welding unit first. In reality, the issue may have started much earlier — before the strip even entered the forming section.

A small change in carbon content can affect heating behavior. Higher impurity levels may increase the risk of brittle areas forming inside the weld. Even something as basic as poor strip edge quality can create problems later during high-frequency welding.

For example, strip edges with burrs, rust, or uneven trimming often prevent molten oxides from being discharged properly during welding. That increases the chance of inclusions and incomplete fusion. Width fluctuations can create forming instability as well, which eventually affects how consistently both edges meet before welding begins.

We've seen cases where a factory spent days adjusting welding parameters, only to discover the real problem was a new steel coil batch with inconsistent edge condition.

The machine was doing exactly what it was told. The raw material wasn't giving it much to work with.

✅Stable Welds Usually Come From Boring Consistency

A lot of production teams look for a single adjustment that will magically solve recurring weld defects.

Sometimes those actions help temporarily. Most of the time, they only treat symptoms.

Good weld quality usually comes from a production line that stays predictable day after day.

That means welding power needs to stay matched with line speed. Squeeze force needs to remain stable. Roll alignment has to be checked before it turns into a bigger issue. Bearings need maintenance before vibration starts affecting the seam.

And raw material quality has to remain consistent enough that operators aren't constantly compensating for new variables.

Even the V-angle, edge condition, and extrusion amount can quietly affect weld performance if they drift too far from normal ranges. Many common ERW defects are caused by multiple small factors stacking together rather than one major failure.

That's usually what separates mills with stable output from mills that are constantly troubleshooting.

It's rarely one big upgrade.

More often, it's teams paying attention to small process details before they become expensive problems.

Final Thought

Individually, they may seem minor.
